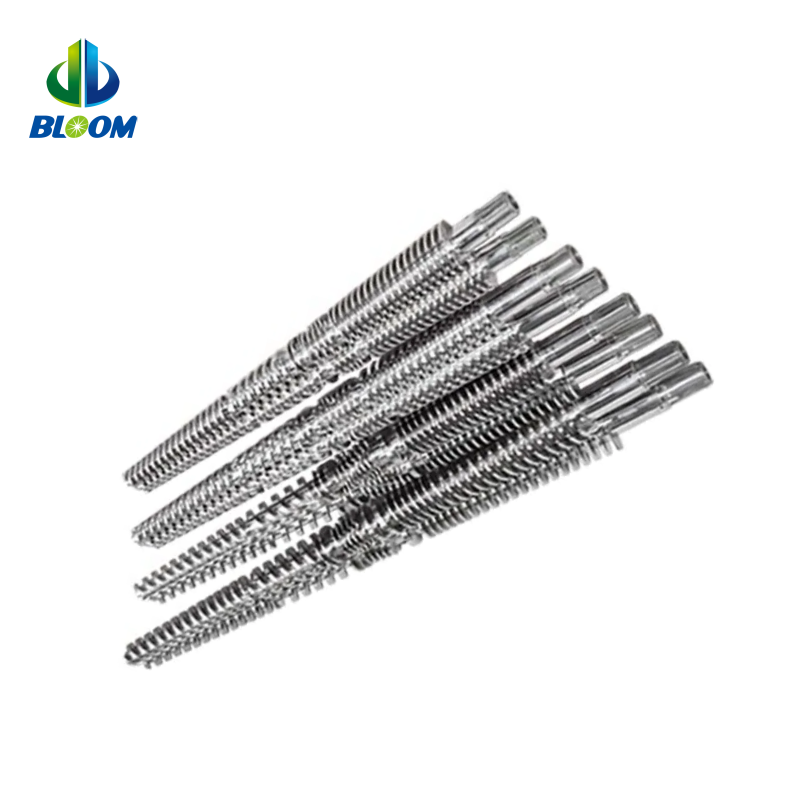

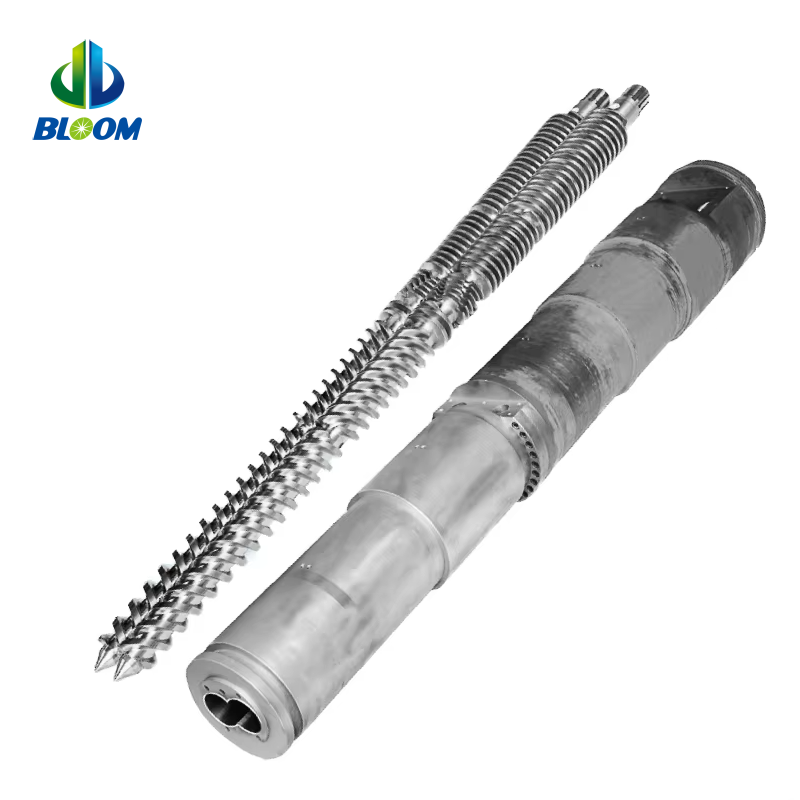

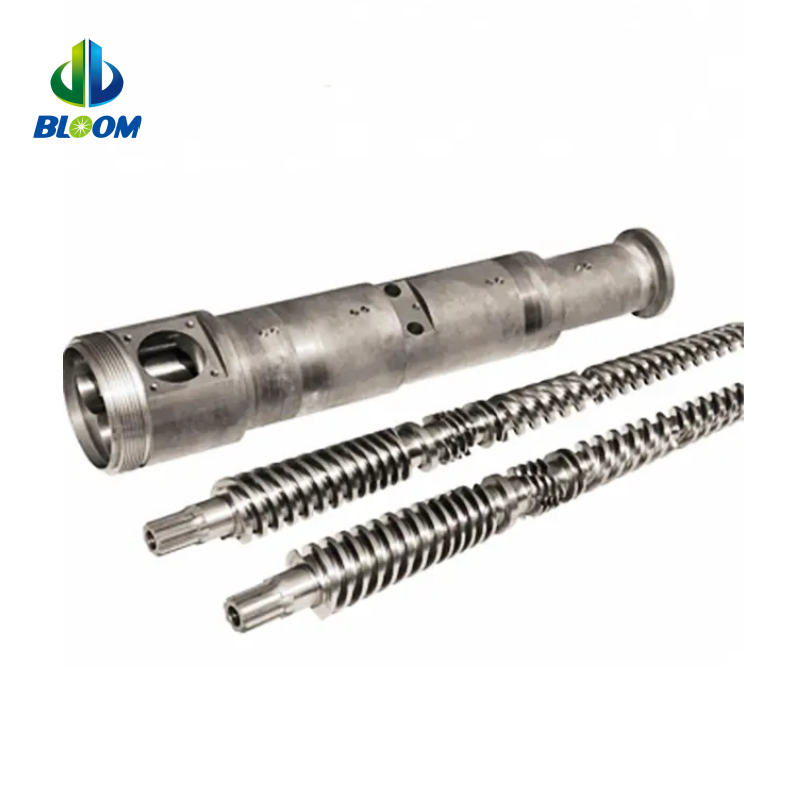

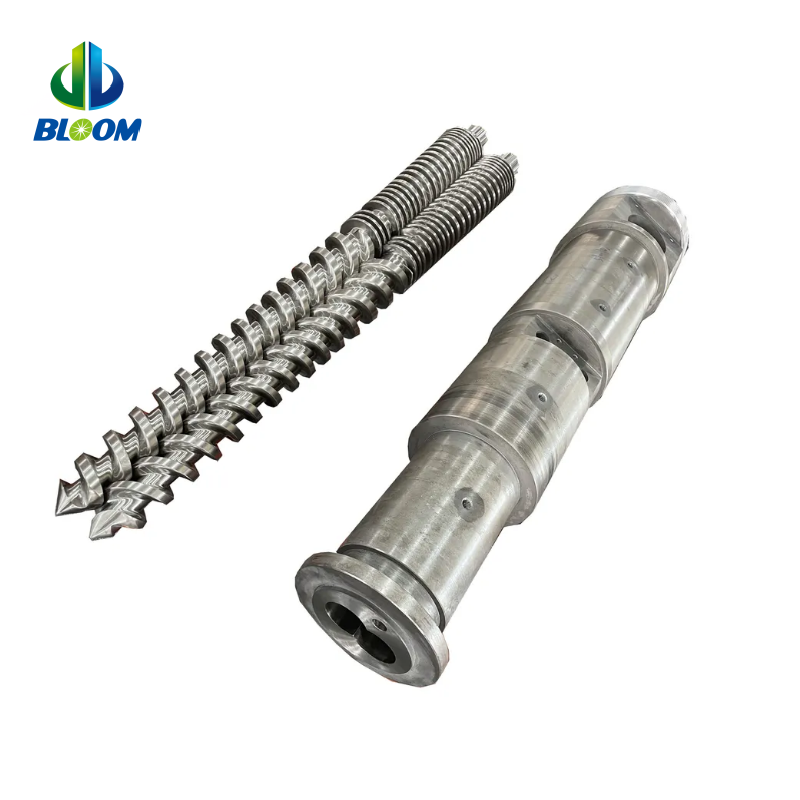

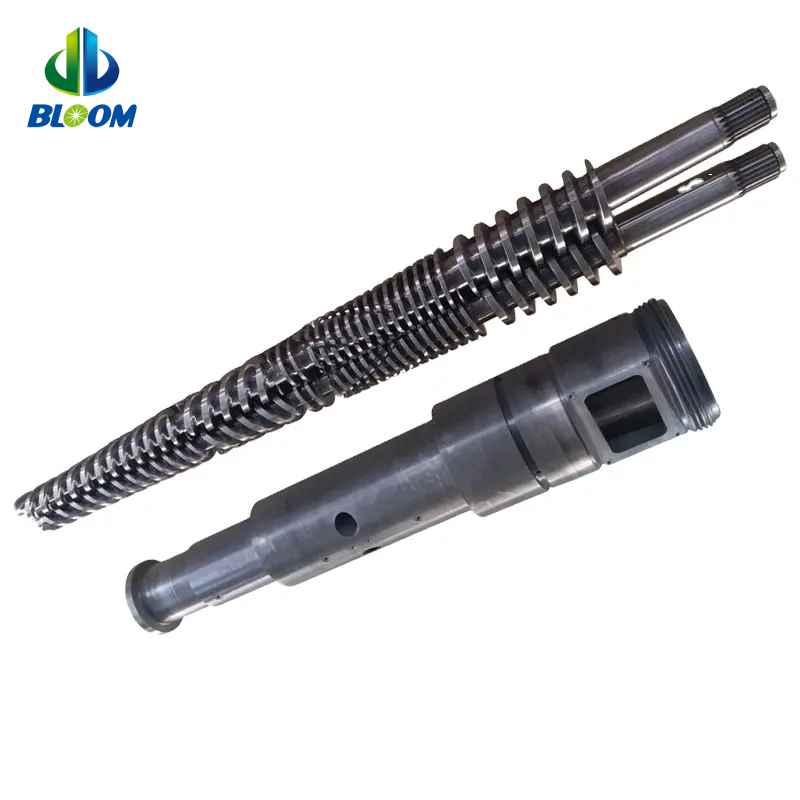

The conical twin-screw extruder achieves progressive compression, melting and mixing of the
materials through the gradually narrowing conical design during the rotational meshing process.
It is particularly suitable for processing heat-sensitive materials or high-fill ratio formulations, and
is an efficient core component in rubber and plastic extrusion.
Main Types
 MAIN SPECIFICATION |
|||
| Specification | Working length(mm) | Extrusion ability(kg/h) | Rotation speed of screw(rpm) |
| φ35/φ77 | 810 | 40-70 | 5~50 |
| φ45/φ90 | 990 | 50-80 | 5~45 |
| φ50/φ105 | 1070 | 100-150 | 4~45 |
| φ51/φ105 | 1220 | 100-150 | 4~45 |
| φ55/φ110 | 1220 | 120-180 | 4~40 |
| φ60/φ125 | 1320 | 150-200 | 4~40 |
| φ65/φ120 | 1440 | 200-250 | 4~40 |
| φ65/φ132 | 1440 | 200-250 | 4~40 |
| φ70/φ140 | 1460 | 220-300 | 4~40 |
| φ75/φ150 | 1480 | 250-300 | 4~35 |
| φ80/φ143 | 1800 | 300-360 | 4~35 |
| φ80/φ156 | 1660 | 300-360 | 4~35 |
| φ92/φ188 | 2000 | 400-500 | 4~35 |

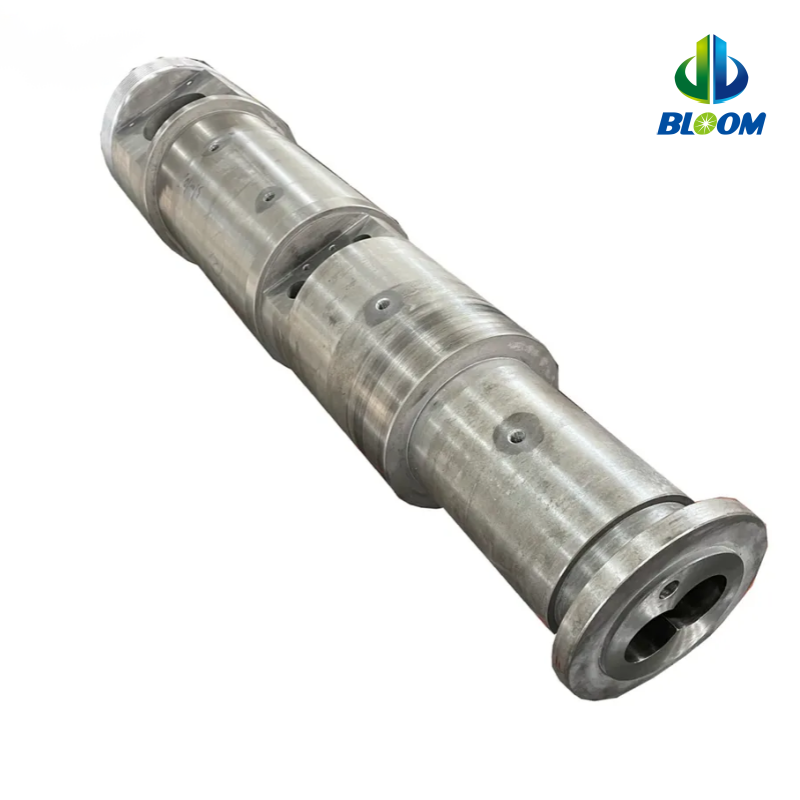

beaillic alloy was filled to make screw barrel more wear-resistant than before
Main advantages
We can offer split type to make screw and barrel replacement more convenient. Unlike integrated
type, customer only need to replace the part which is severely worn, which helps to save cost.
We not only offer extruder parts, but also make improvement solutions for your actual working
conditions.
1. Material consultation:
We can offer different kinds of material to cater for your different working conditions, no matter
it shall be wear-resistant, or anti-corrosion type.
2. Process optimization:
We can improve your orignial design structure to improve production capacity.
3. Customization design:
Not only standard design, we can also offer your special design based on your detailed requirements,
such as split type and integrated type, water cooling or oil cooling.
