Twin Screw Extruder Screw and Barrel Converying Element for Famous Brand Machine / Professional Plastic Machine

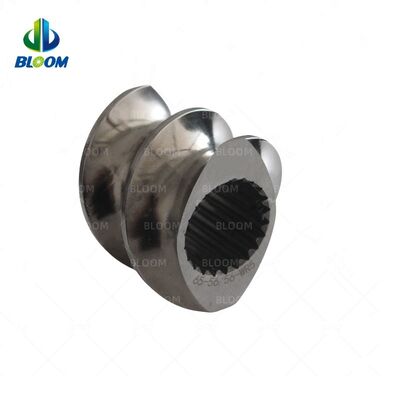

An extruder screw element, also known as a screw segment, is a key component of an extrusion machine. It is responsible for melting and conveying the raw material (such as plastic pellets) down the barrel of the extruder where it is melted, mixed, and transformed into the desired shape or form. The screw elements are typically designed with varying pitch, depth, width, and channel geometry to optimize the melting, mixing, and conveying functions. Different types of screw elements are used depending on the specific requirements of the extrusion process and the properties of the material being processed.
Plastic and rubber machinery parts screw and barrel for twin-screw extruder are used in a variety of applications in the plastics and rubber industries. These components are designed to convey, mix, and melt plastic or rubber materials, and are crucial to the performance and efficiency of twin-screw extruder machines.

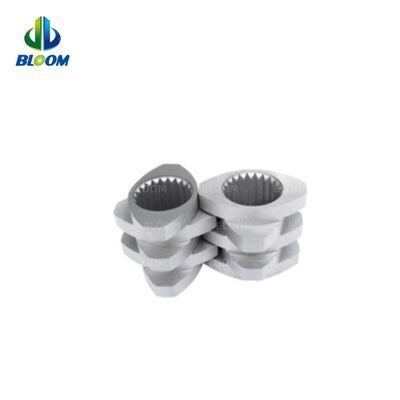

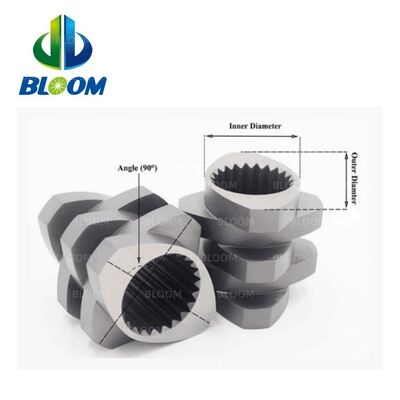

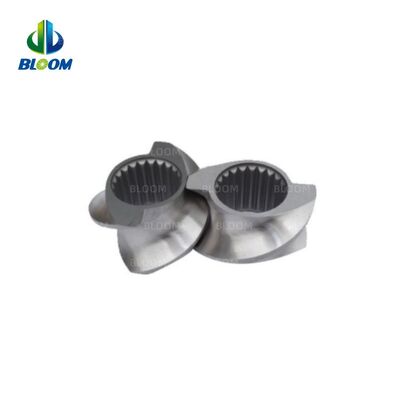

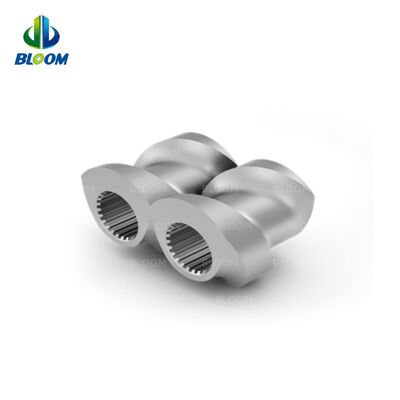

Twin-screw extruder screw and barrel conveying elements are used in a variety of professional plastic machines and are designed to convey plastic materials through the extruder while providing proper mixing and melting. These conveying elements are specifically designed for use in twin-screw extruders and are often made from high-quality materials such as nitride steel, bimetallic alloys, and other wear-resistant materials.
Many famous brands in the plastic processing industry use twin-screw extruder screw and barrel conveying elements as part of their machines, including:
Overall, twin-screw extruder screw and barrel conveying elements are essential components in many professional plastic machines and are used in a variety of applications to produce high-quality plastic products.
| MIKROSAN | MCV 55 | MCV 67 | MCV 110 | |||
| BATTENFELD | BEX 65 | BEX 68 | BEX 90 | BEX 92 | BEX 107 | BEX 110 |
| KRAUSS MAFFEI | KMD 60 | KMD 75 | KMD 90 | KMD 110 | KMD 114 | KMD 130 |
| CINCINNATI | ARGOS 72 | ARGOS 90 | ARGOS 93 | ARGOS 114 | ARGOS133 | ARGOS 135 |
| THEYSOHN | TTS 78R-26 | TTS 88R-24 | TTS 88R-26 | TTS 108R-24 | TTS 108R-26 | TTM 138-28 |
| WEBER | DS 7.22 | DS 8.32 | DS 11.22 | DS 12.32 | DS 13.22 | DS 850 / 2b |
| Base Material | 1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JISSKD-11) ; 3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI4140) |
| Bimetallic Alloy Materials | 1)Fe-based alloy2)Ni-based alloy/Deloroalloy 3)Co-based alloy4)NiCo-based alloy 5)Tungsten carbide/Wolframcarbide |
| Double-alloylevel | Level A - containing Tungsten of40% Level B - containing tungsten of 25% Level C - containing tungsten of15% |
| Surface Treatment | Heat Treatment High FrequencyTreatment Nitriding treatment(120Hours): Depth of Nitrided Layer: 0.5-0.8mm Hardness of Nitrided Layer: 900-1020Hv(HRC56°-65°) HardChrome Plating treatment: Thickness of Hard Chrome Plating Layer:0.05-0.10mm Hardness ofHard Chrome Plating Layer: ≥950HV Nickel alloyplating.treatment: Bimetallic barrel / Cylinder: Centrifugal Casting(Inlay Alloy) BimetallicScrew: Plasma Alloy Coating Spraying Depth of Bimetallic Layer: >2mm Hardness of Bimetallic Layer: HRC55°-72° Spraying corrosion wear-resisting dual metallayers |
Tool Steel W6Mo5Cr4V2
PM HIP material WR5 WR13 WR14 CPM10V CPM9V
Nitrided Steel 38CrMoAI
PM HIP material WR13 WR14 CPM10V CPM9V
PM HIP material WR13 WR14 CPM10V CPM9V
Stainless Steel 316L C276 etc
Pressure is generated if resin passes over the barrier, forcing any air in the melted resin back to the feed side and effectively preventing the intrusion of air bubbles on the sub flight side. This is highly effective with resins that generate bubbles such as PS, PA, PET and EVOH.
Bimetallic Treatment of Screw
The bimetallic screw for extruder twin screw is a kind of screw spray welding a 2~3mm-thick alloy coat on the screw flight of output area for the screw . The Bimetallic treatment has excellent corrosion resistance, abrasion resistance and high working temperature. And its useful service life is greatly improved contrast to the common nitrided screw.
